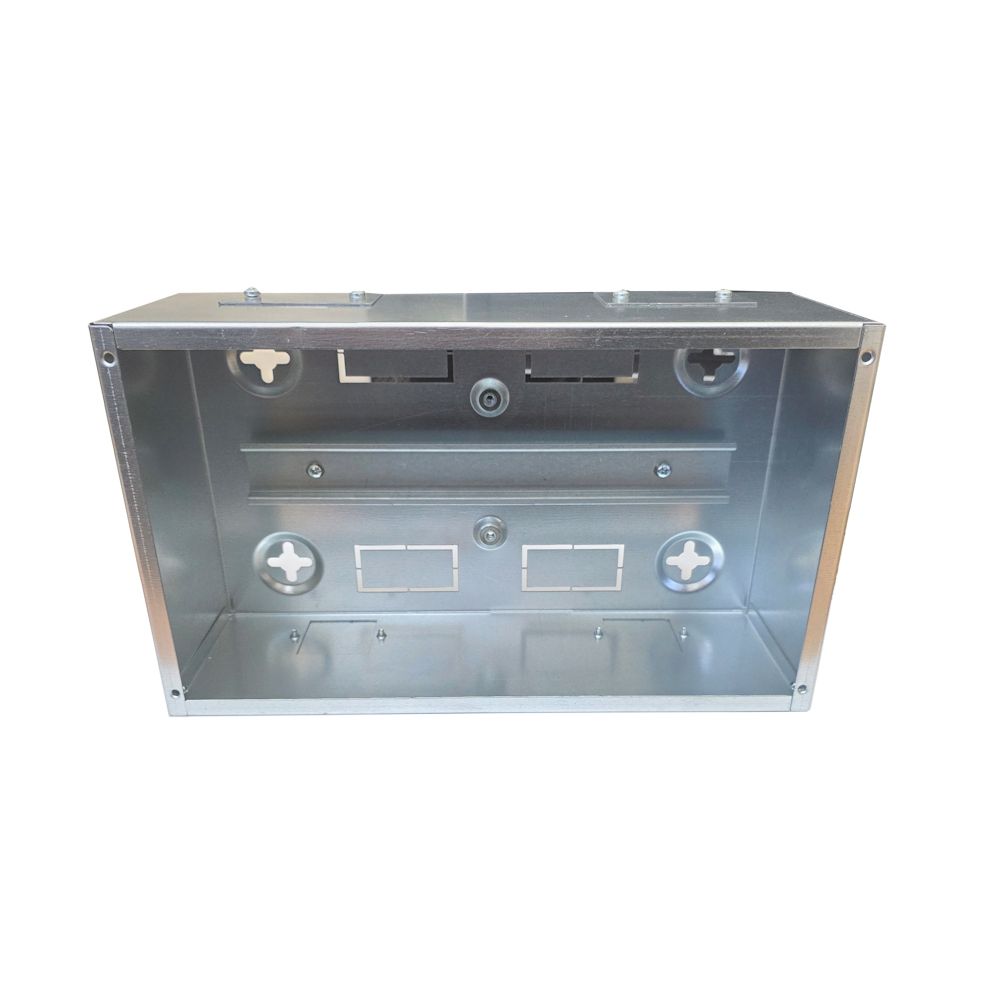

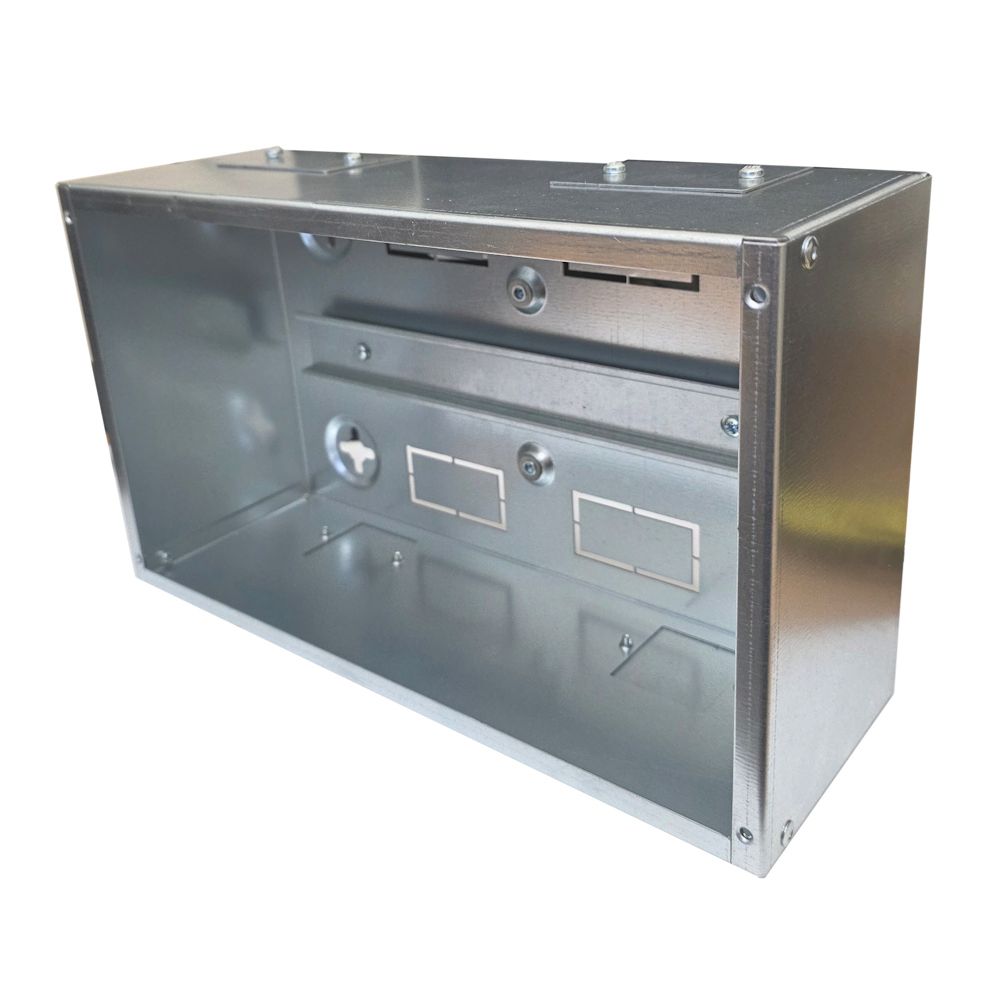

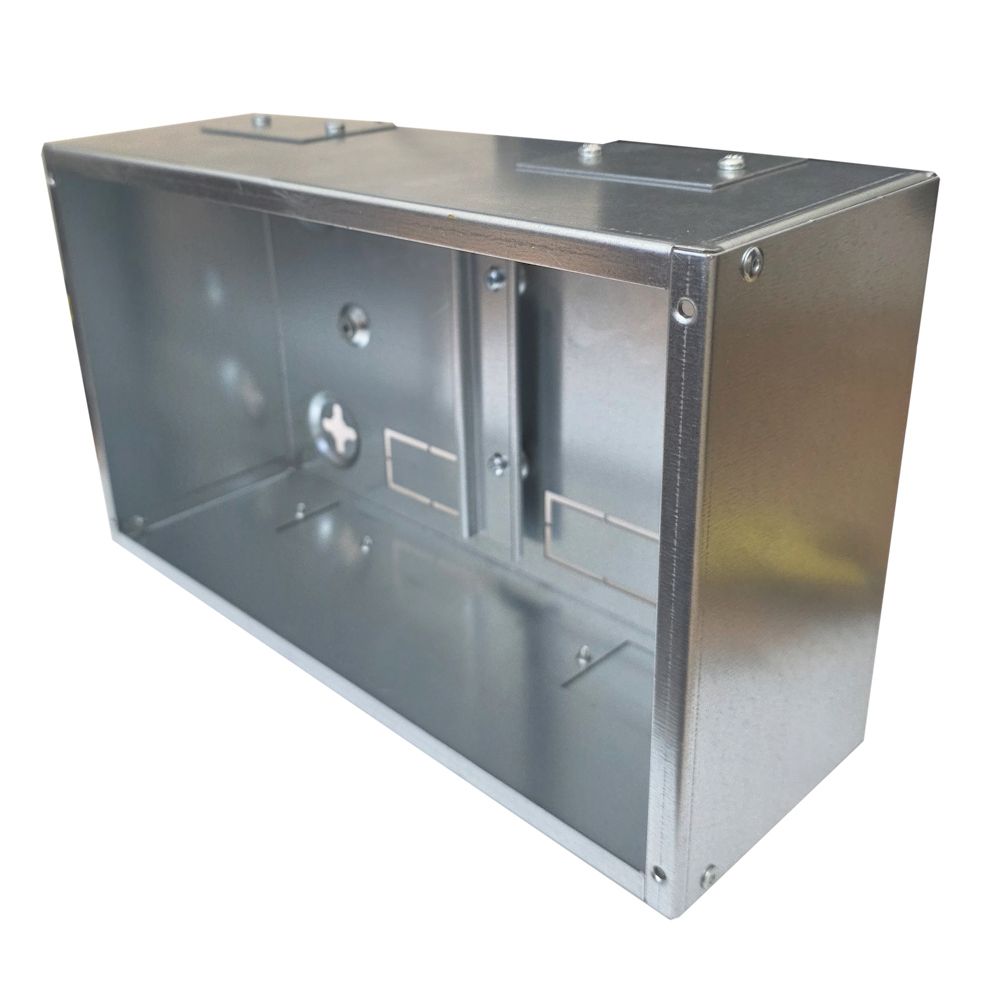

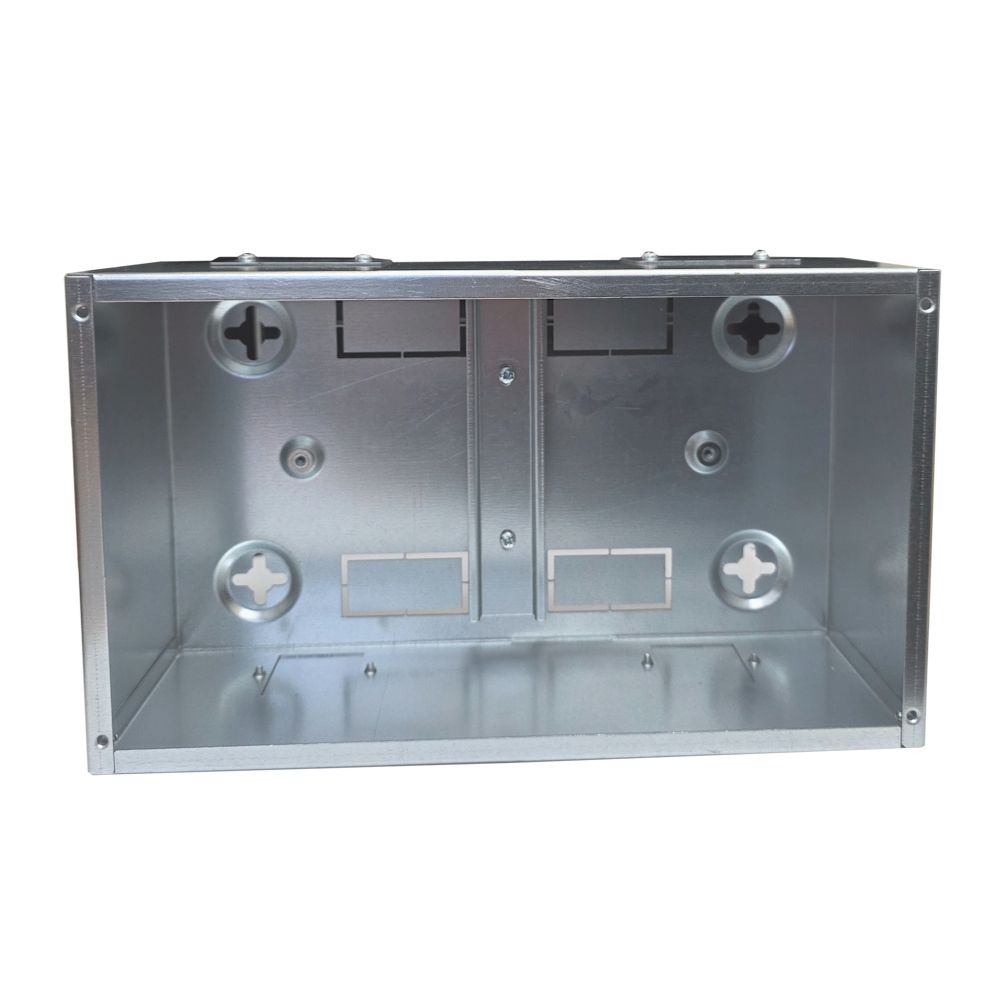

Type 3 Galvanized Steel DIN Rail Adaptable Box 320mm x 190mm x 110mm
Ref: ADAGB-T3-320X190X110-DIN
Brand: AD-TEK (Network-Cabs)
£52.95 £63.54 inc. VAT at 20%
9 in stock.
Type 3 Galvanized Steel DIN Rail Adaptable Box 320mm x 190mm x 110mm

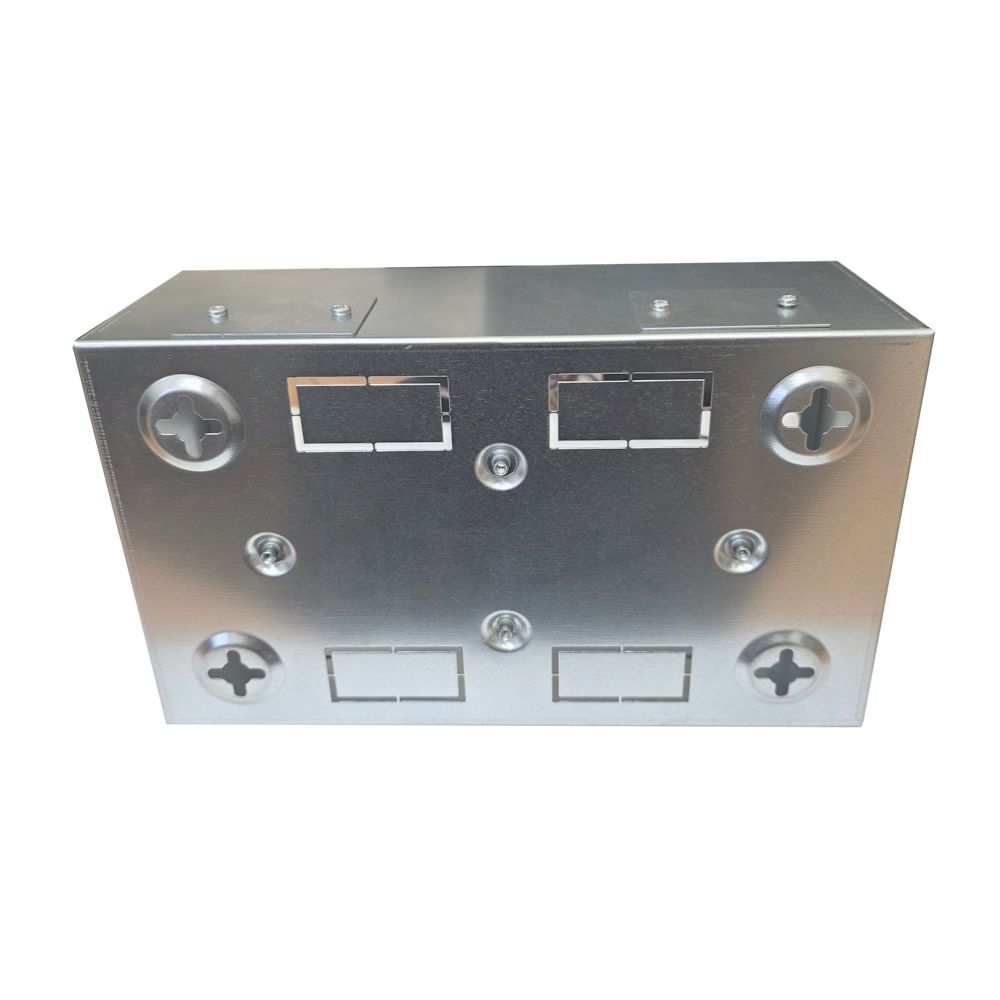

 Rear has formed spacers which enables better wall fixing and allows screw heads to be outside the box when fitting internal equipment.

  • Electrical Distribution for DIN Rail Devices.
  • Internal raised spacer for fitting of DIN Rail.
  • TS35 DIN Rail supplied ( 35 x 8.7 x 342 )
  • Removable blanking plates for cable access top and bottom.
  • Rear removable plate to allow cabling to enter at rear of unit.
  • Vented Front Cover
  • Manufactured from Galvanized Steel and Painted front cover
  • Sturdy and robust

These items go well with this product:

When you click the main add to cart button above, any quantities you add here will also be added to your cart. If you can't see the add to cart options you need to click to view the product's own page.

Specification

Overall Height:190mm
Overall Width:320mm
Overall Depth:110mm
Colour:Black
Colour:Galvanised Steel

Datasheet

Click here to view Data Sheet for DIN Rail Enclosure Type 3 320x190x110 1 Way 15 Module , Perf Vented Cover (PDF opens in new tab)
